Logistics

Characteristics of the equipment

Specification Value
Model Hartung943000
Load capacity  45 t
Loading height (under load)  1250 +/- 15 mm
Length 10200 mm +/- 50 mm
Length of rear overhang  800 +/- 20 mm
Width 2550 (3150 with wideners) +/- 10 mm
Platform type  Metal
Number of axes  3 (air suspension)
Axes BPW
Wheel arrangement 6+1
Dovetails Mechanical 2 pcs, 50 t
Dovetail width  600 mm
Angle of approach  18 °
Supports insertable 1500, 8 pcs
Grousers yes
Wideners yes
Year of manufacture  2017

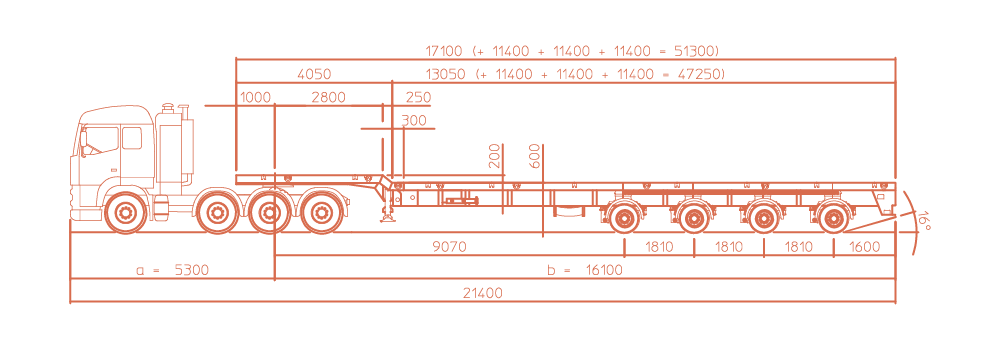

17100 - 51300
6500-10000
6000
16000, 50 т.

Characteristics of the equipment



Name Parameters
Model Tverstroymash 99394
Load capacity  60 t
Loading height (under load) 600 +/- 15 mm
Length (expanded)  6500 mm(10000 mm) +/- 50 mm
Length of rear bogie  5950 mm
Width 2540 (2990 with wideners) +/- 10 mm
Platform type  Metal
Number of axes 4 (2 fixed, 2 pivoted)
Axes GIGANT
Dovetails No. Front loading
Arrestor catch for lateral movement yes
Rigging points Maximum quantity
Possibility to drive on a bogie  yes
Wideners on a working platform  yes
Smart Board Vabco yes
Pressure gauges  yes
Year of manufacture  2017
10000-18000

Characteristics of the equipment

Specification Value
Model Tverstroymash 99393
Load capacity 38 t
Loading height (under load)  895 +/- 15 mm
Length 11000 mm +/- 50
Length of rear overhang  700 +/- 20 mm
Width 2530 (2990 with wideners) +/- 10 mm
Platform type  Wood + metal
Number of axes  3
Axes  SAF
Dovetails Mechanical 2 pcs, 30 t
Dovetail width 600 mm
Angle of approach 18 °
Supports insertable 1500, 8 pcs
Smart Board Wabco yes
Wideners yes
Pressure gauges  yes
Year of manufacture  2016
10000-17000

Characteristics of the equipment

Specification Value
Model Tverstroymash 99394
Load capacity  55 t
Loading height (under load)  895 +/- 15 mm
Length 10000 mm +/- 50 mm
Length of rear overhang 800 +/- 20 mm.
Width 2530 (2990 with wideners) +/- 10 mm
Platform type  Wood + metal
Number of axes  4
Axes SAF
Dovetail width  600 mm
Angle of approach 21 °
Supports insertable 1500, 8 pcs
Smart Board Wabco yes
Wideners yes
Pressure gauges  yes
Year of manufacture  2016
11000-17000

Characteristics of the equipment

Name Parameters
Model Tverstroymash 99395
Load capacity  58 t
Loading height (under load)  895 +/- 15 mm
Length  10000 mm (17000 mm раздвижка, шаг 500 mm) +/- 50 mm
Length of rear overhang 700 +/- 20 mm
Width 2530 (2990 with wideners) +/- 10 mm
Platform type Wood + metal
Number of axes  5 (1-  with axle locking mechanism, 4,5 thrusters)
Axes SAF
Dovetails Mechanical
Supports insertable 1500, 8 pcs
Smart Board Wabco yes
Фитинги контейнерные yes
Wideners yes
Pressure gauges  yes
Year of manufacture  2016
10000-17000

Characteristics of the equipment

Name Parameters
Model Tverstroymash 99396
Load capacity  74 t
Loading height (under load) 895 +/- 15 mm
Length 10000 mm (17000 mm раздвижка, шаг 500 mm) +/- 50 mm
Length of rear overhang 700 +/- 20 mm
Width 2530 (2990 with wideners) +/- 10 mm
Platform type  Wood + metal
Number of axes  6 (1st thruster, 2nd with axle locking mechanism, 5,6 thrusters)
Axes  Gigant
Dovetails Mechanical
Supports insertable 1500, 8 pcs
Smart Board Wabco yes
Container fittings 8 pcs
Wideners yes
Pressure gauges yes
Year of manufacture  2017

Characteristics of the equipment

Specification Value
Model Grunwald 9453
Load capacity  29,4 t
Number of axes  3
Axes BPW
Year of manufacture 2014

Characteristics of the equipment

Specification Value
Model NOVTRAK SP-360
Load capacity  37,5 t
Number of axes  3
Internal length 13620 mm
Internal width 2470 mm
Year of manufacture   2013

Characteristics of the equipment

Name Parameters
Model Tonar 974614
Load capacity  45 t
Number of axes 4
Internal length 13620 mm
Internal width 2480 mm
Year of manufacture  2014

One of the major activities of ATS is international logistics, including the following: customs and logistics consulting, FEA outsourcing, assistance in obtaining all necessary permits, supply chain management, provision of warehousing services along the route.

We ensure “just in time” delivery.


Our team has unique multi-year practical experience in project logistics and implementation of industrial projects for the delivery of oversized and heavy high-tech equipment, such as:

  • Gas turbines
  • Steam turbines
  • Generators, transformers
  • Wind turbine blades
  • Reactors
  • Drilling rigs
  • Autoclaves, etc.

         We have competencies to manage the delivery of entire infrastructure facilities, such as thermal, nuclear, hydro, wind farms, oil refineries, starting from the moment of embedded elements delivery to the site to the installation and commissioning of major equipment, including delivery to hard-to-reach and remote sites beyond the Polar Circle.

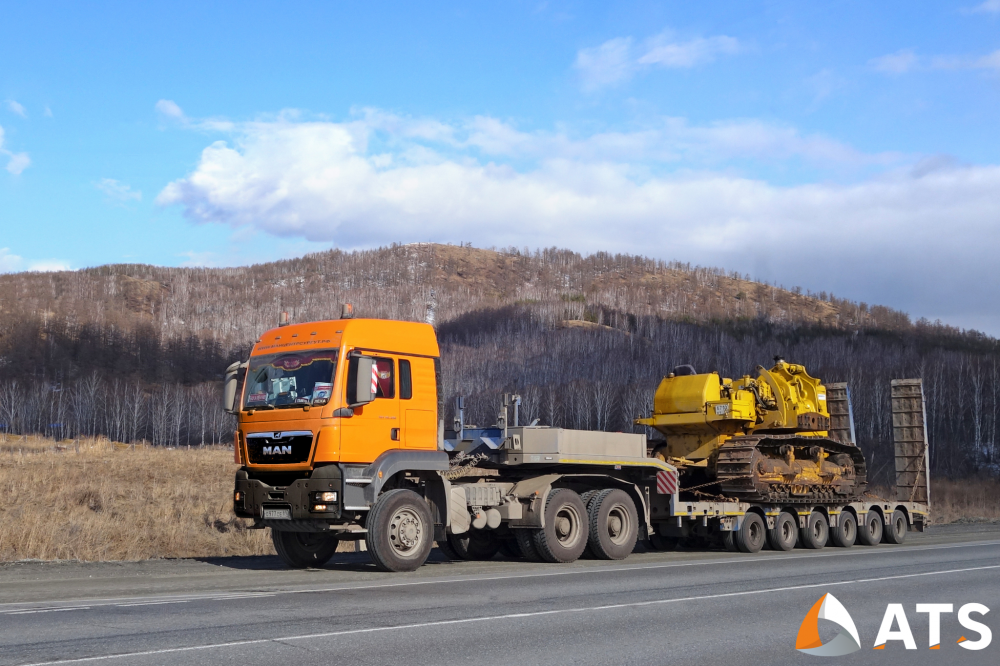

a1

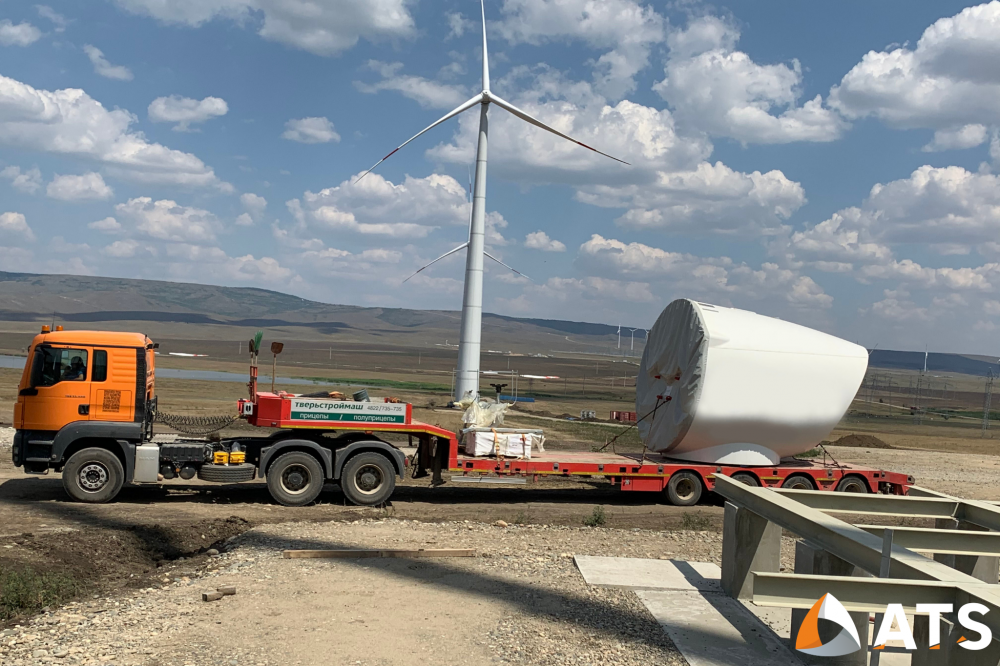

a2

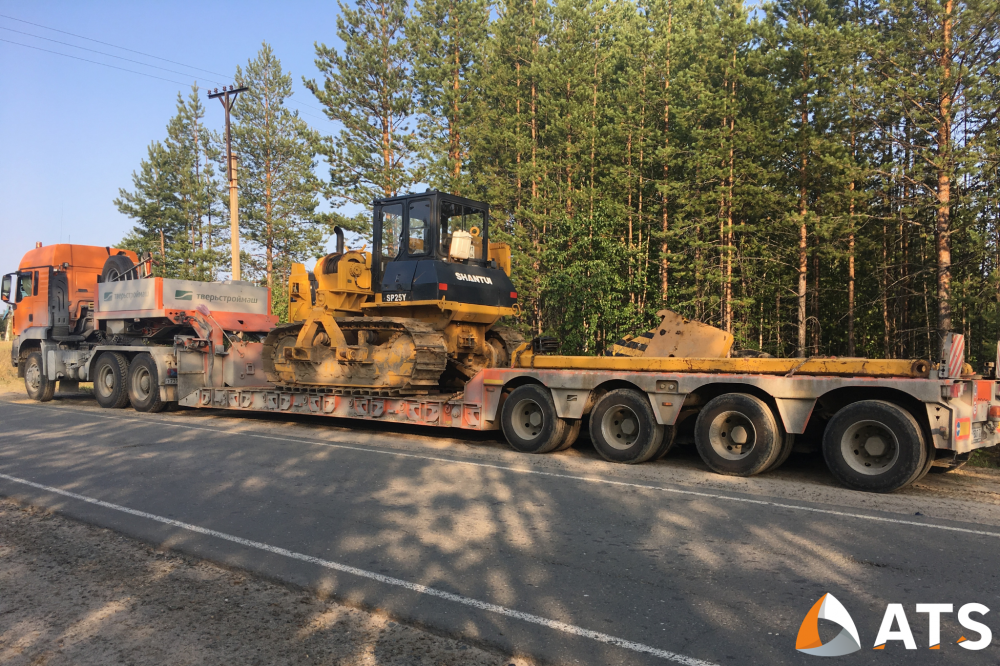

a3

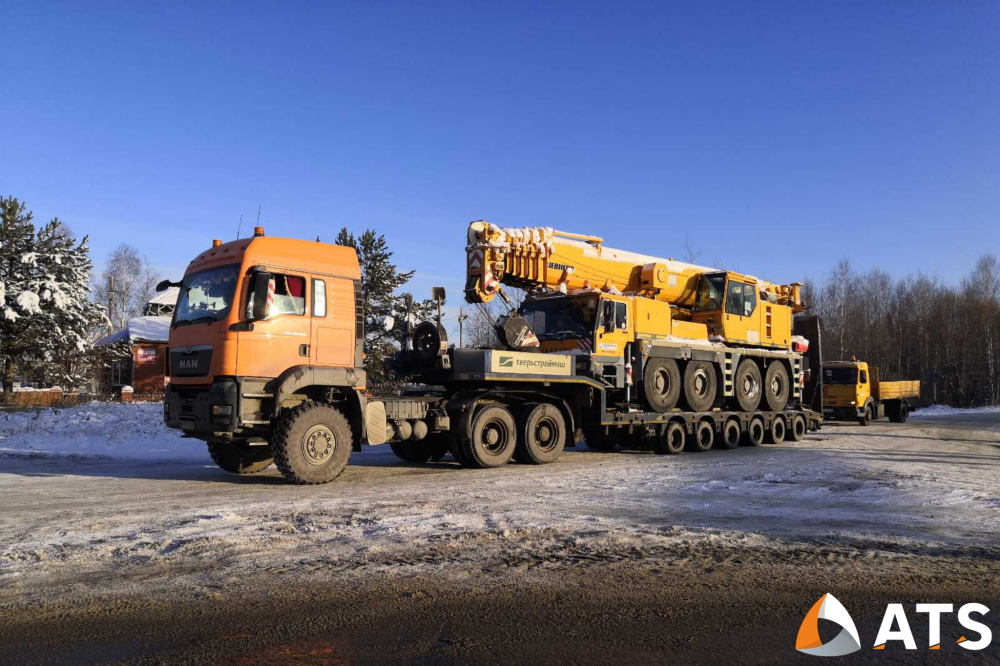

a4

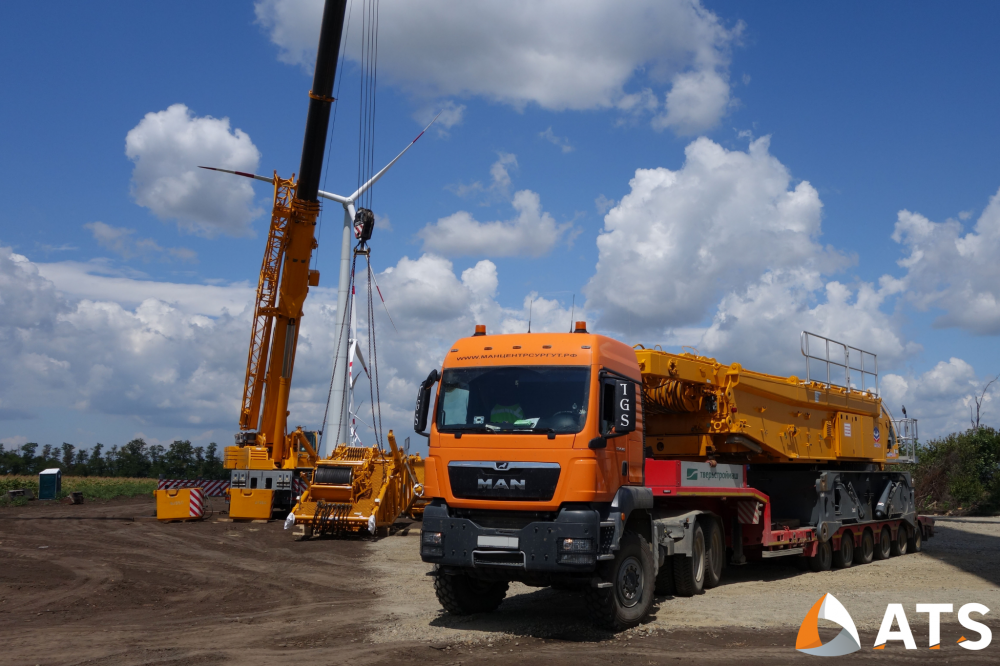

a5

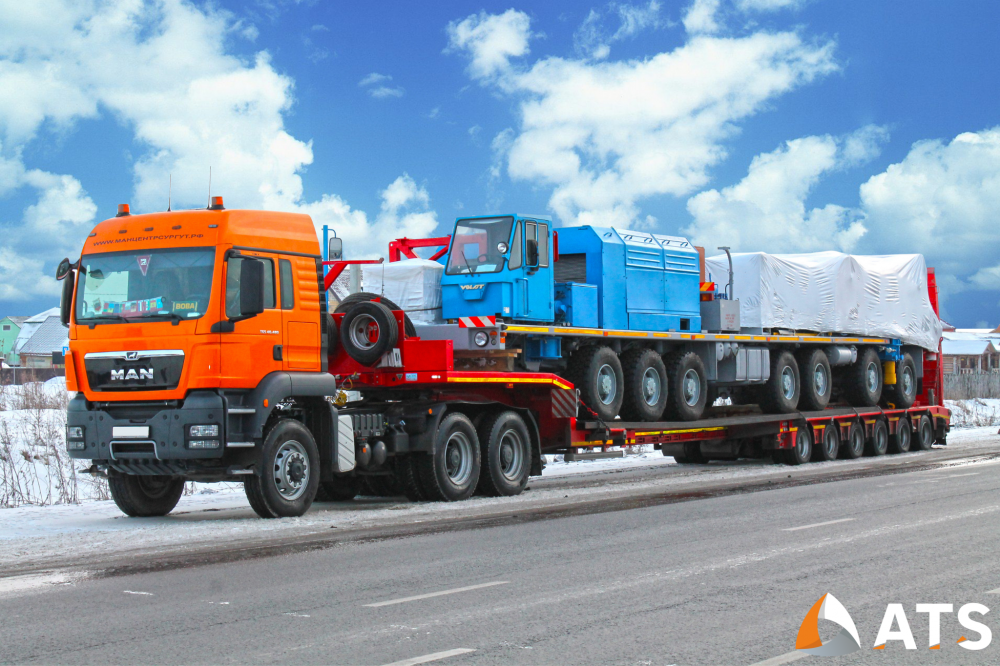

a6

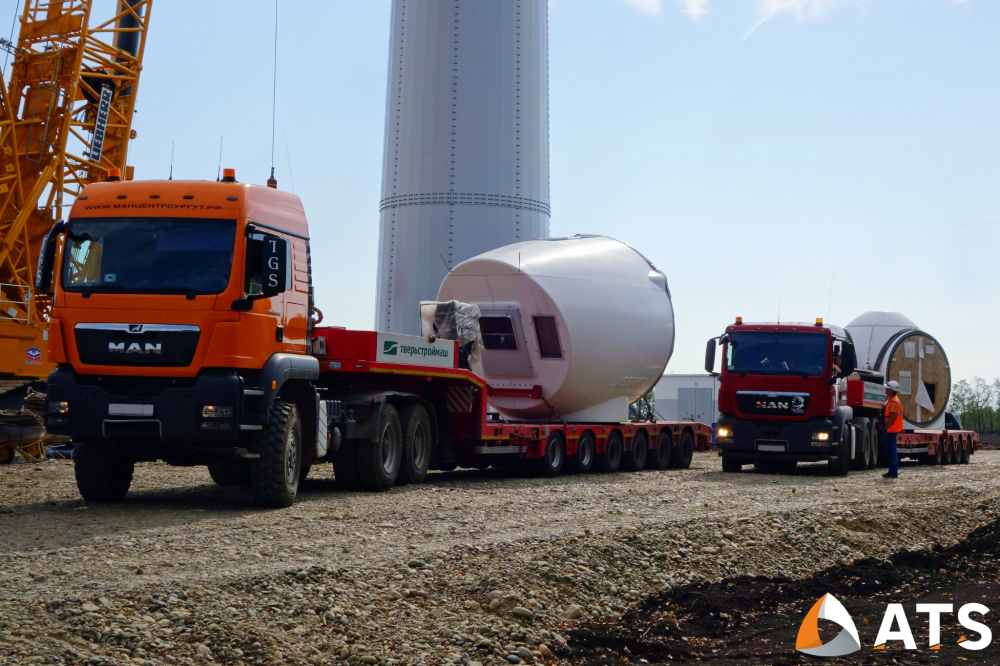

a7

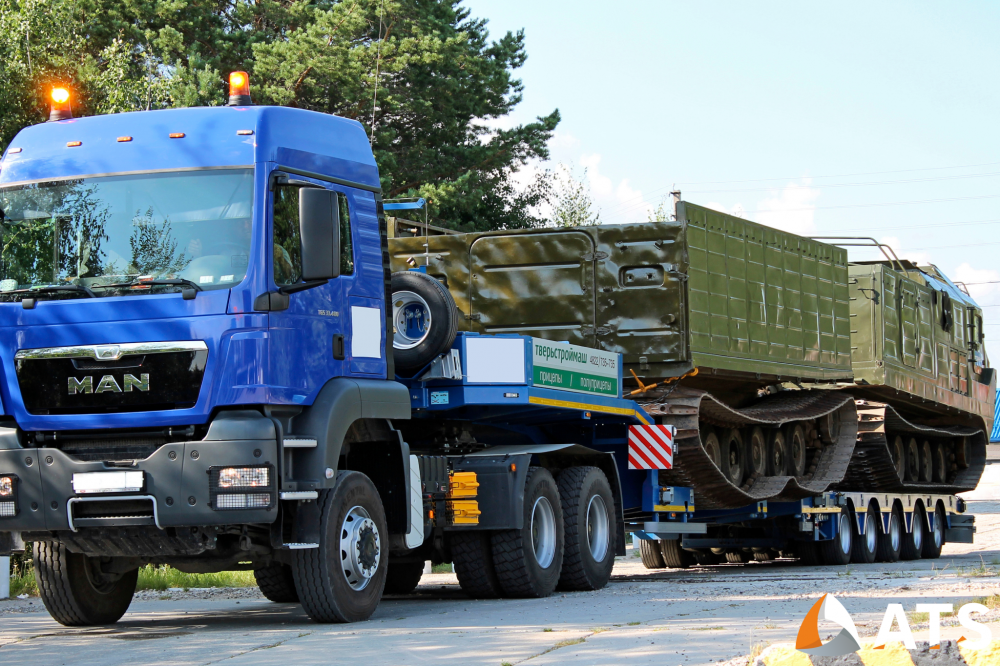

a8
a9

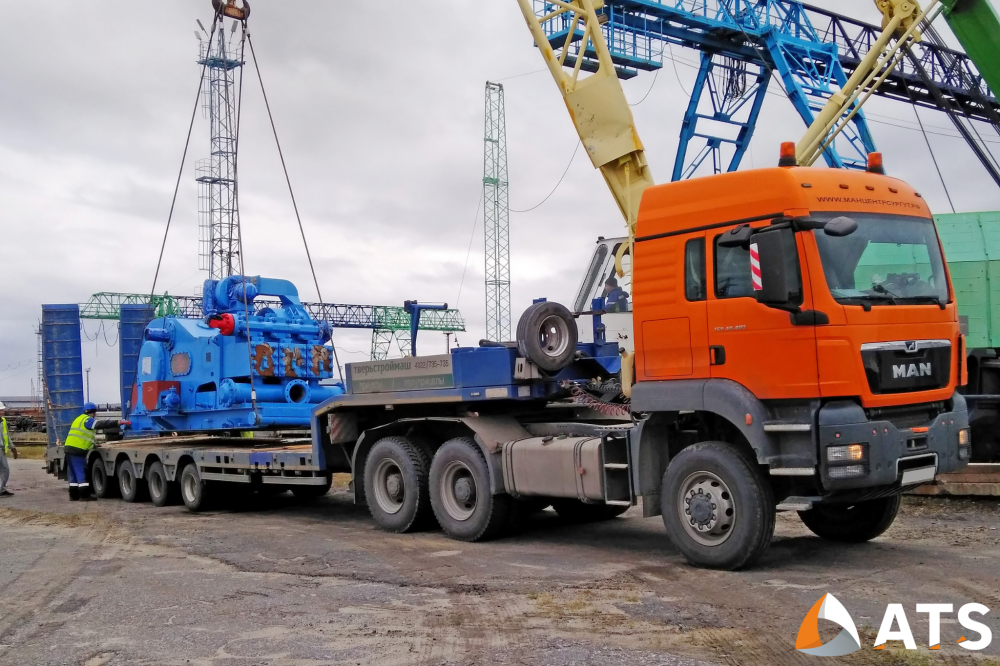

a10

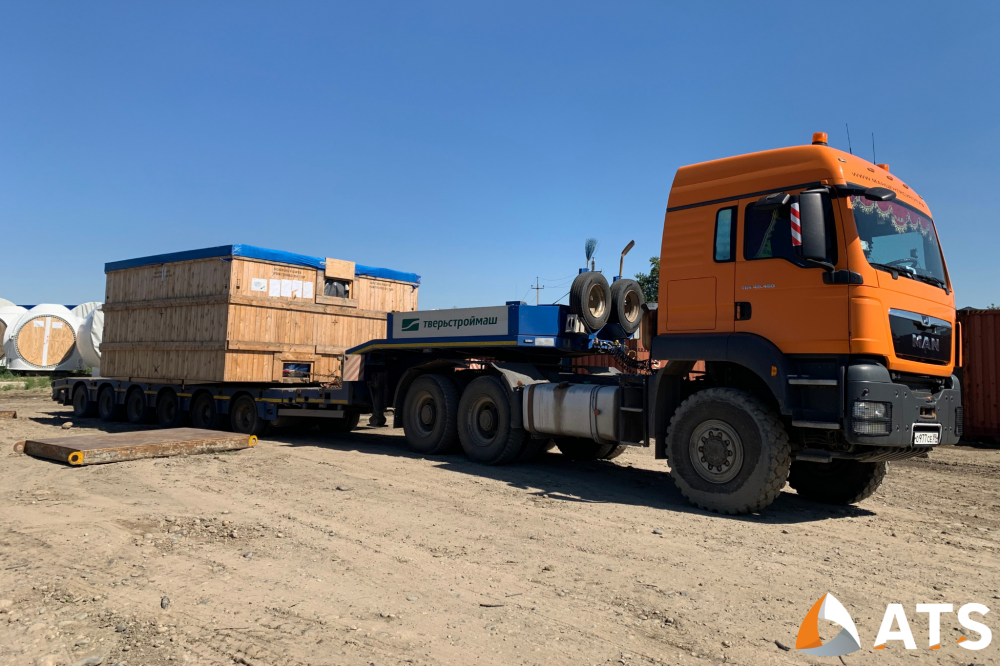

a11

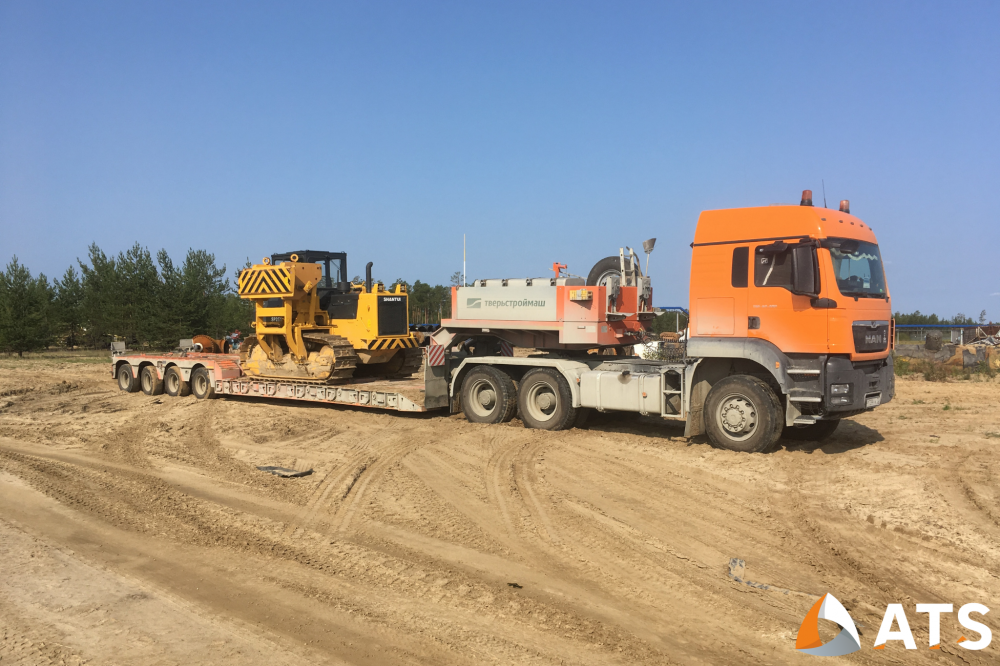

a12

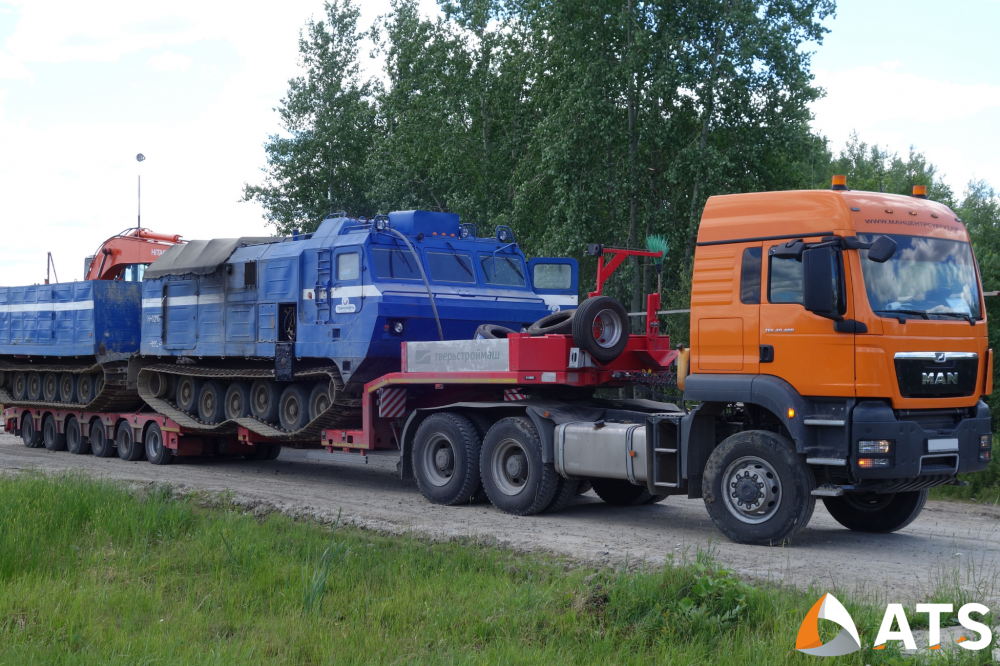

a13

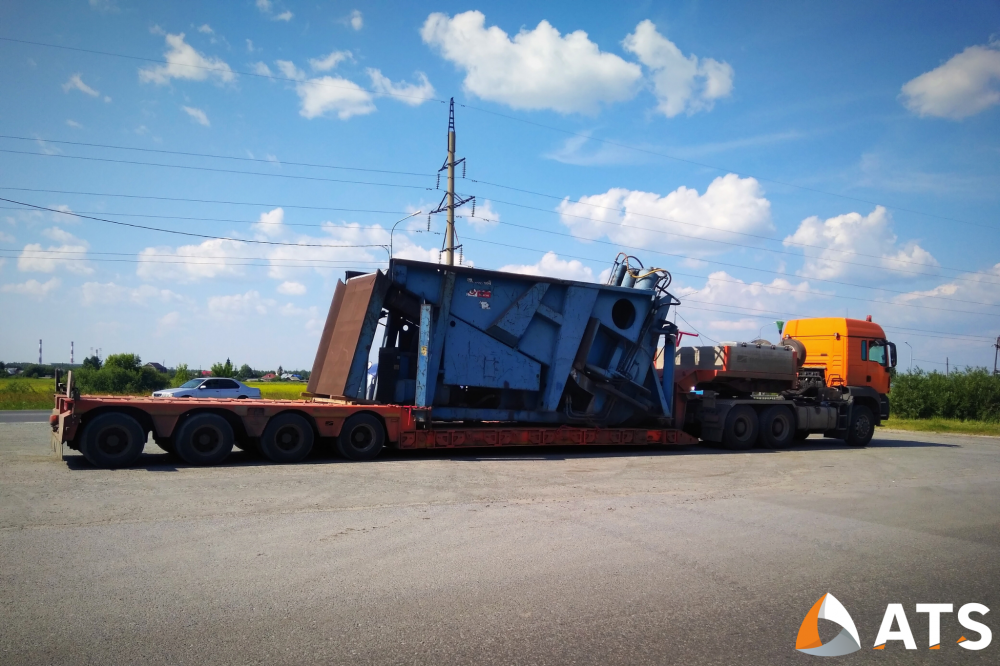

a14

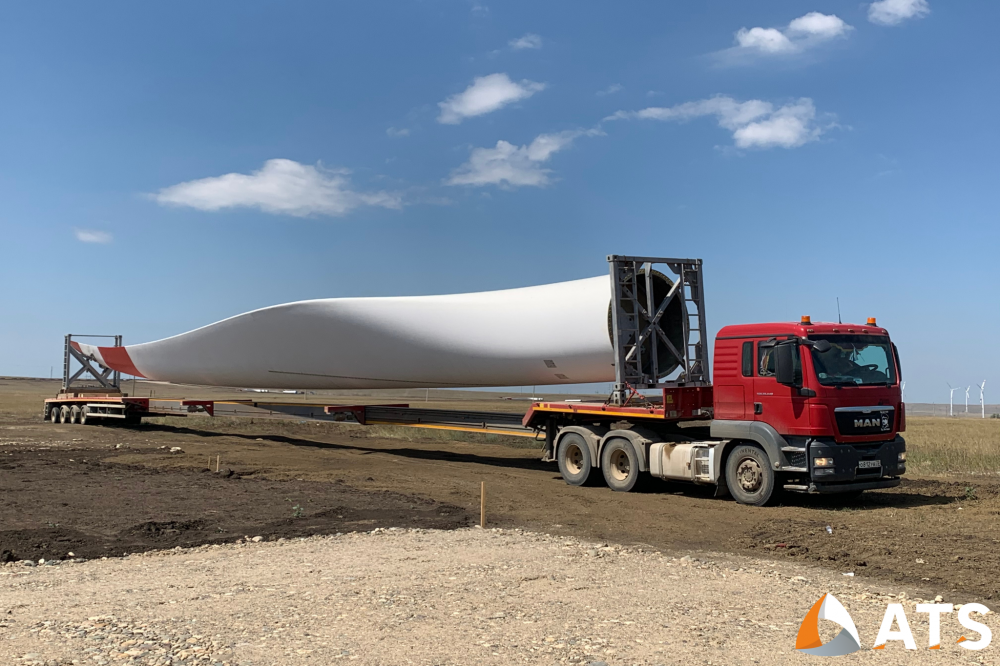

a15

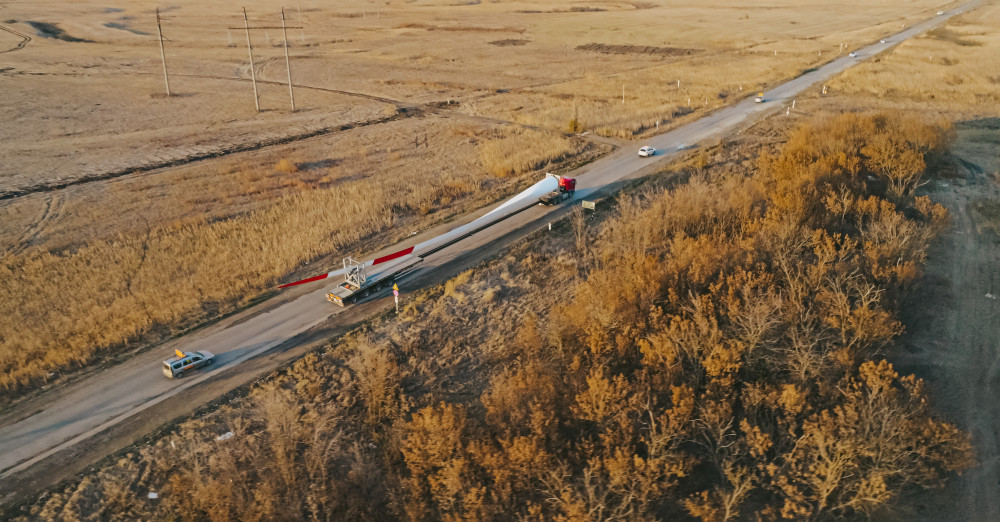

а16

LLC “ATS” is a company with extensive experience in oversized cargo forwarding in Russia. Oversized cargo transportation, and performing special logistic tasks for oil and gas and energy facilities is one of the top-priority goals of the company. Transportation of outsized and heavy cargo requires special escort, and handling of up to 500 t cargo requires a fleet of mobile cranes. AutoTrans-Siberia has a fleet of tractors, trawls and special equipment for the transportation of oversized cargo.

Hundreds of successfully completed projects, a team of experienced logisticians, strict adherence to tender documents. Take a closer look at the portfolio of the company's logistics projects .
